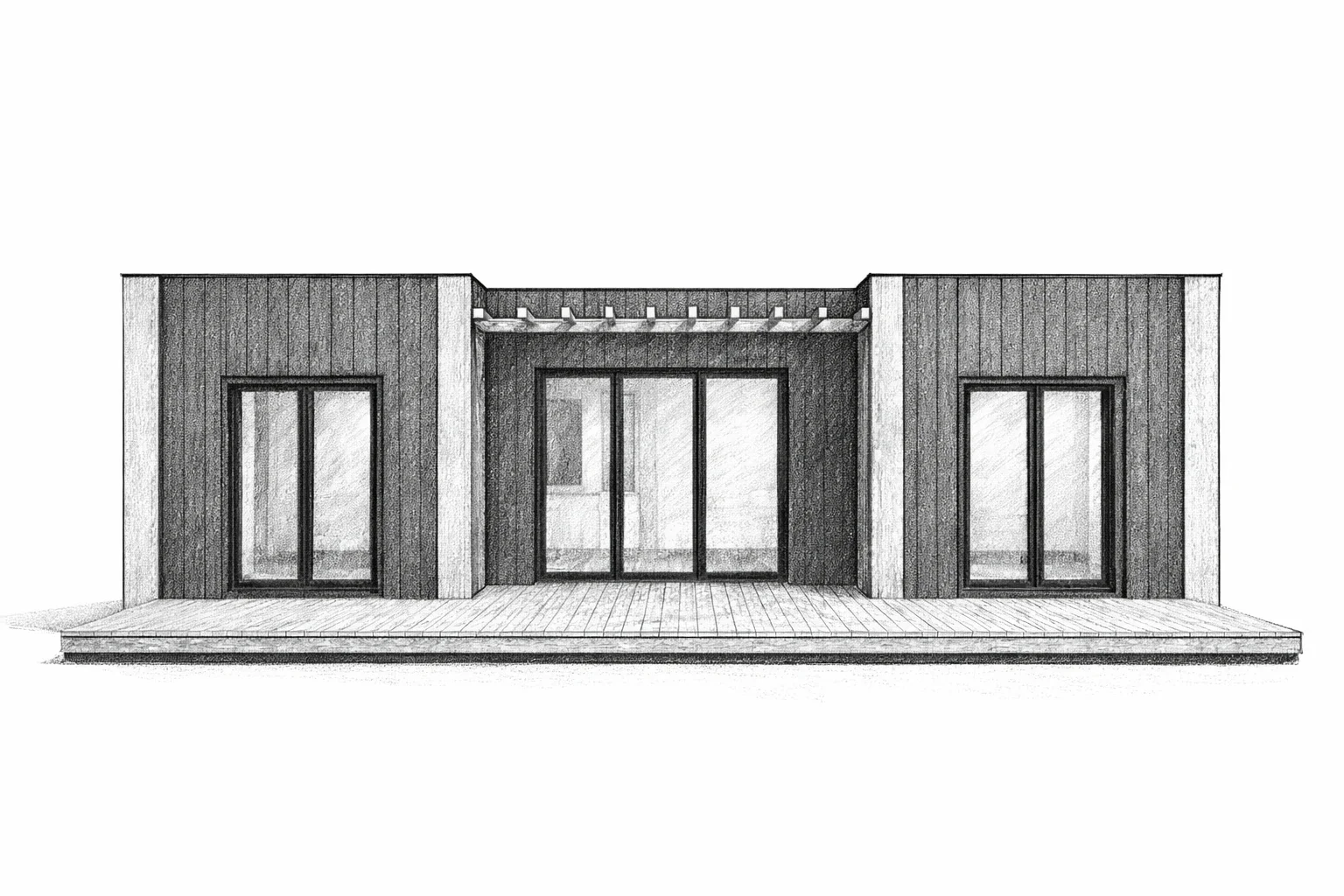

Drawing of a modern exterior front of a house with large glass sliding doors, vertical wooden siding, and a wooden deck.

Everyday comfort, long-term durability.

Book Appointment

PACIFIC AFFORDABLE HOUSING GROUP

PACIFIC AFFORDABLE HOUSING GROUP

Discover Modular Home Model: Cascadia Lodge

Designed for Vancouver Island, BC.
Built for permanence.

CSA A 277 - Approved

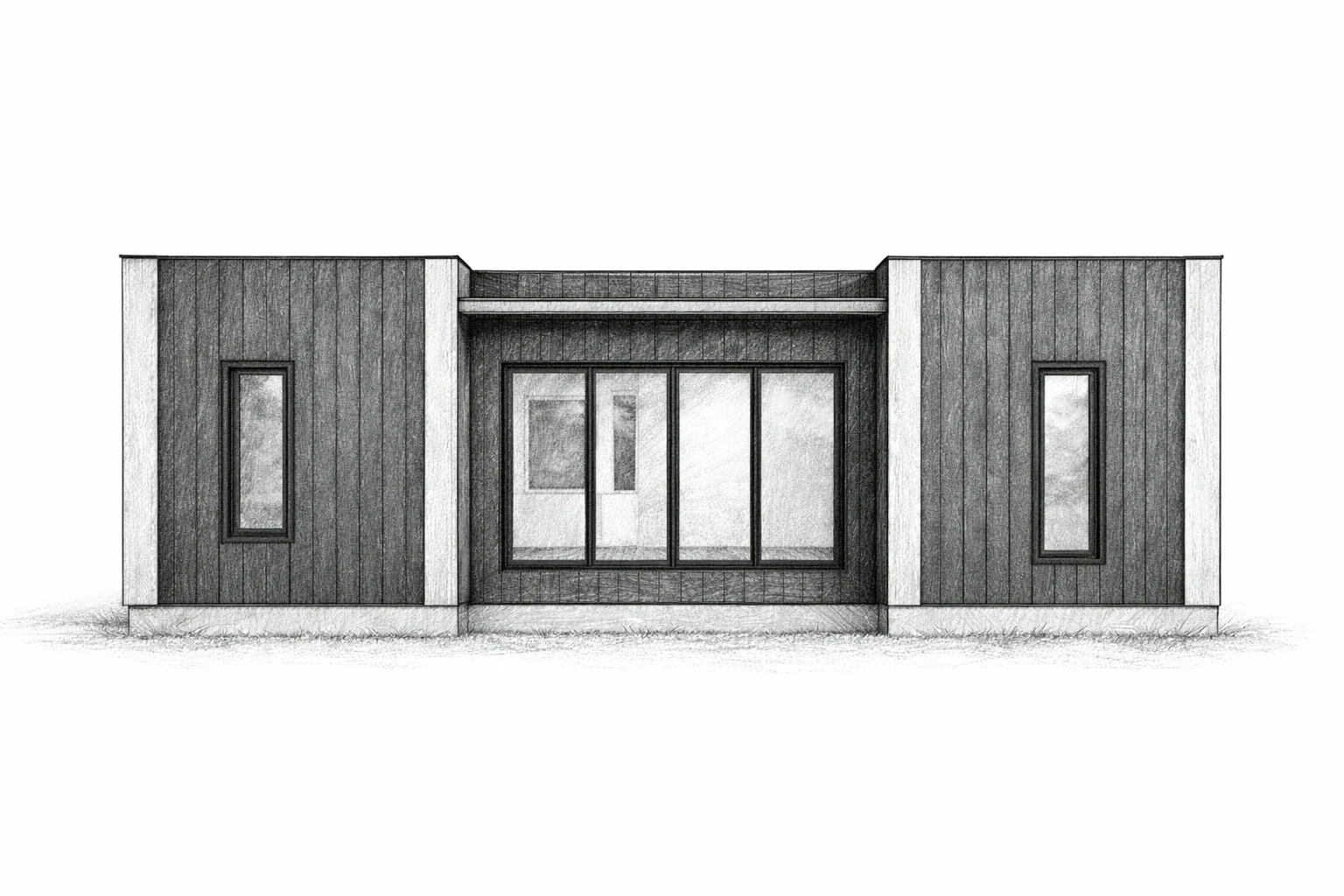

Sketch of a modern rectangular house with wood siding, centered sliding glass doors, and two narrow vertical windows.
factory-built modular home

It is not temporary.
It is not mobile.
It is a permanent residential home, delivered with precision and installed on a permanent foundation.

Floor plan of a house showing layout of rooms including a living area, dining area, kitchen, bedroom, and bathroom, with measurements in feet and inches.
rebate-friendly envelope

At the core of Cascadia Lodge is a steel frame stud structure.

From single homes to multi-unit developments

We saw the demand early — and we had the experience to act on it.

Across Vancouver Island, the need for fast, reliable, code-compliant housing is recognisable.

Contact Us

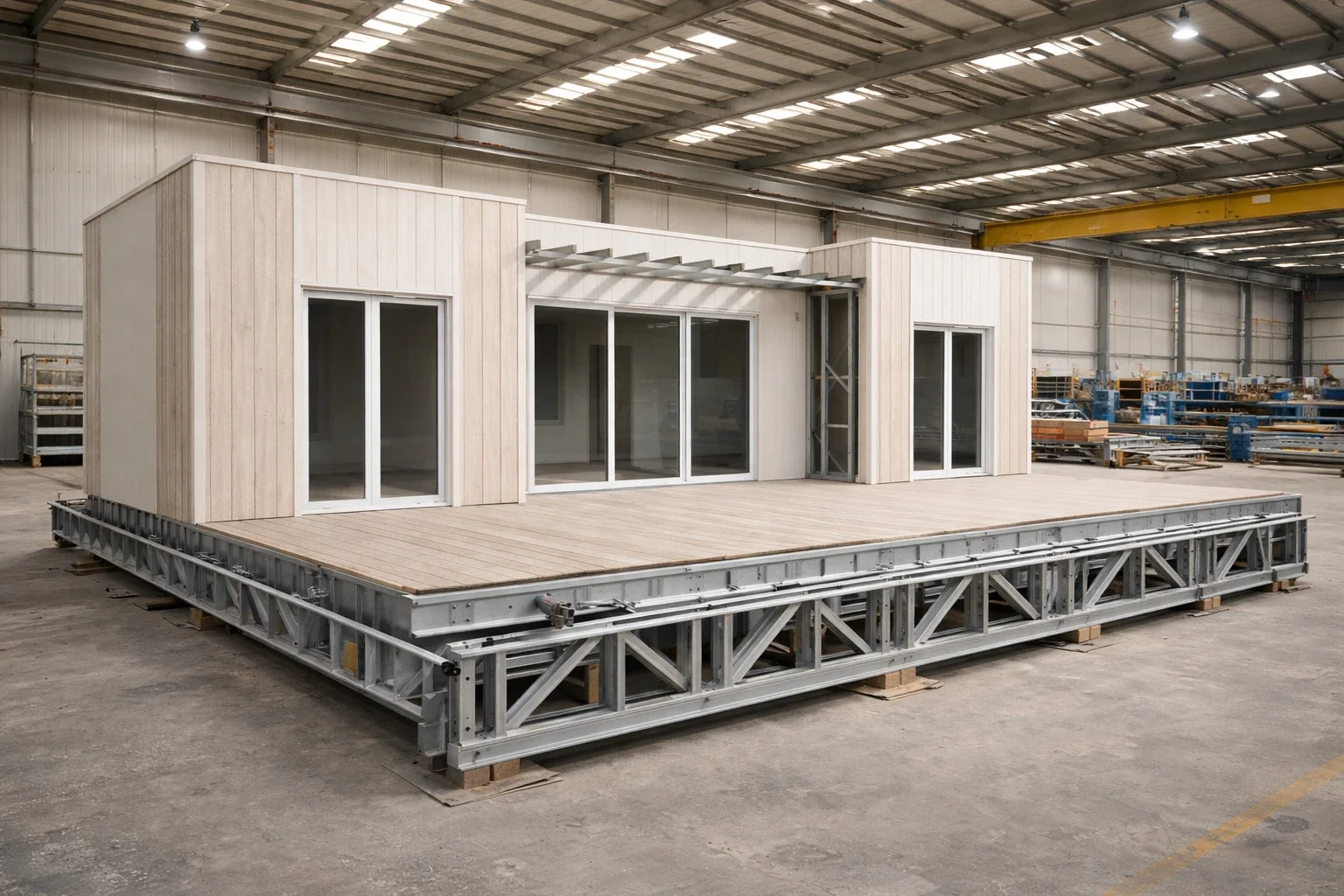

Construction site with a small, modern, prefabricated house on a metal platform inside a warehouse.
FIXED PRICE

1163 sq ft × $300 = $348,900 CAD

  1. Structure: Cold-formed steel frame

  2. Roof: Single-slope, 15° (higher at front / entrance side)

  3. Bedrooms: 3

  4. Bathroom: 2

  5. Kitchen + Living: Open concept

  6. Use cases: Primary home · ADU · Rental · Vacation unit

Schedule a private blueprint review.

Our construction drawings are permit-ready and fully completed.
For intellectual property protection, plans are not distributed online — instead, we invite you to review everything in person at our Sooke, BC production facility.

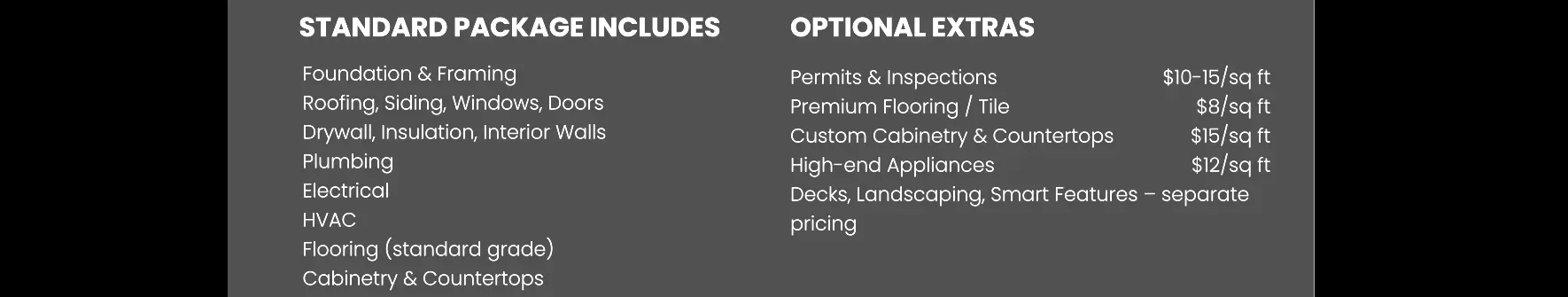

Table comparing standard package and optional extras for home construction. Standard package includes foundation, framing, roofing, siding, windows, doors, drywall, insulation, interior walls, plumbing, electrical, HVAC, flooring, cabinetry, and countertops. Optional extras include permits, inspections, premium flooring, custom cabinetry, high-end appliances, and decks, landscaping, or smart features.

Our homes are rebate-ready by design — non-combustible steel construction, continuous mineral insulation, and high-performance glazing installed in a factory-controlled environment for predictable energy performance.

Installed insulation

1. Floors: ~200 mm
(≈ R-30+ equivalent)

2. Walls: ~150 mm (
≈ R-24–26 equivalent)

3. Roof: ~150 mm
(≈ R-30 equivalent)

ROCKWOOL Comfortboard® 80

  1. Thermal conductivity: 0.036 W/m·K

  2. Fire rating: A1 non-combustible

  3. Steel framing eliminates rot, mold, and structural degradation

Airtight installation strategy

1. Double-glazed, argon-filled units

2. Thermal installation with sealing tape + spray foam

3. Energy-efficient PVC doors
